Phoenix Contact Make 8 Channel 24V 1 Changeover Relay Board with Pluggable (OEN Make)
Rs. 1,545.00
Sale price
Rs. 1,545.00
Regular price
Skip to product information
Phoenix Contact Make 8 Channel 24V 1 Changeover Relay Board with Pluggable (OEN Make)
Rs. 1,545.00
Sale price
Rs. 1,545.00
Regular price

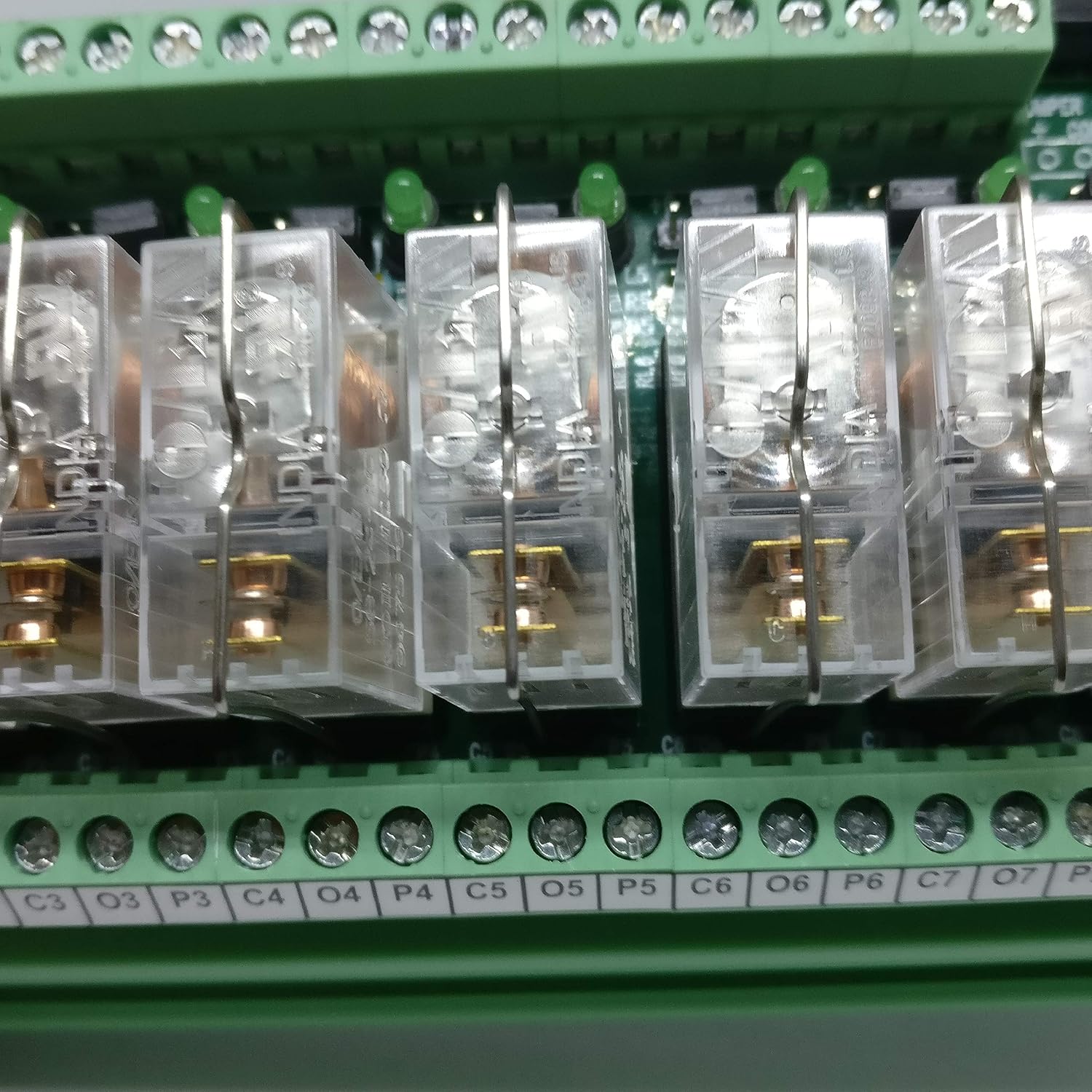

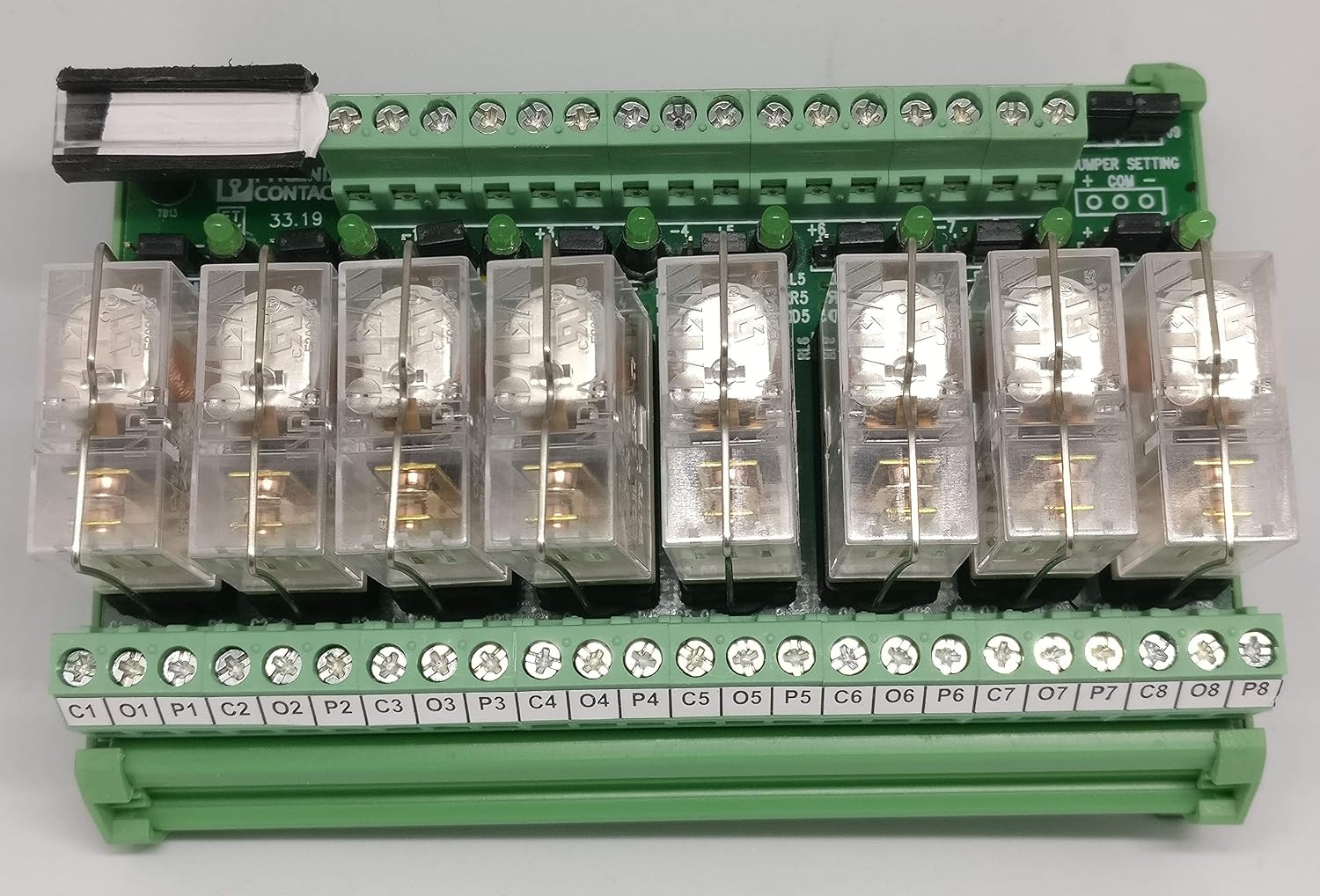

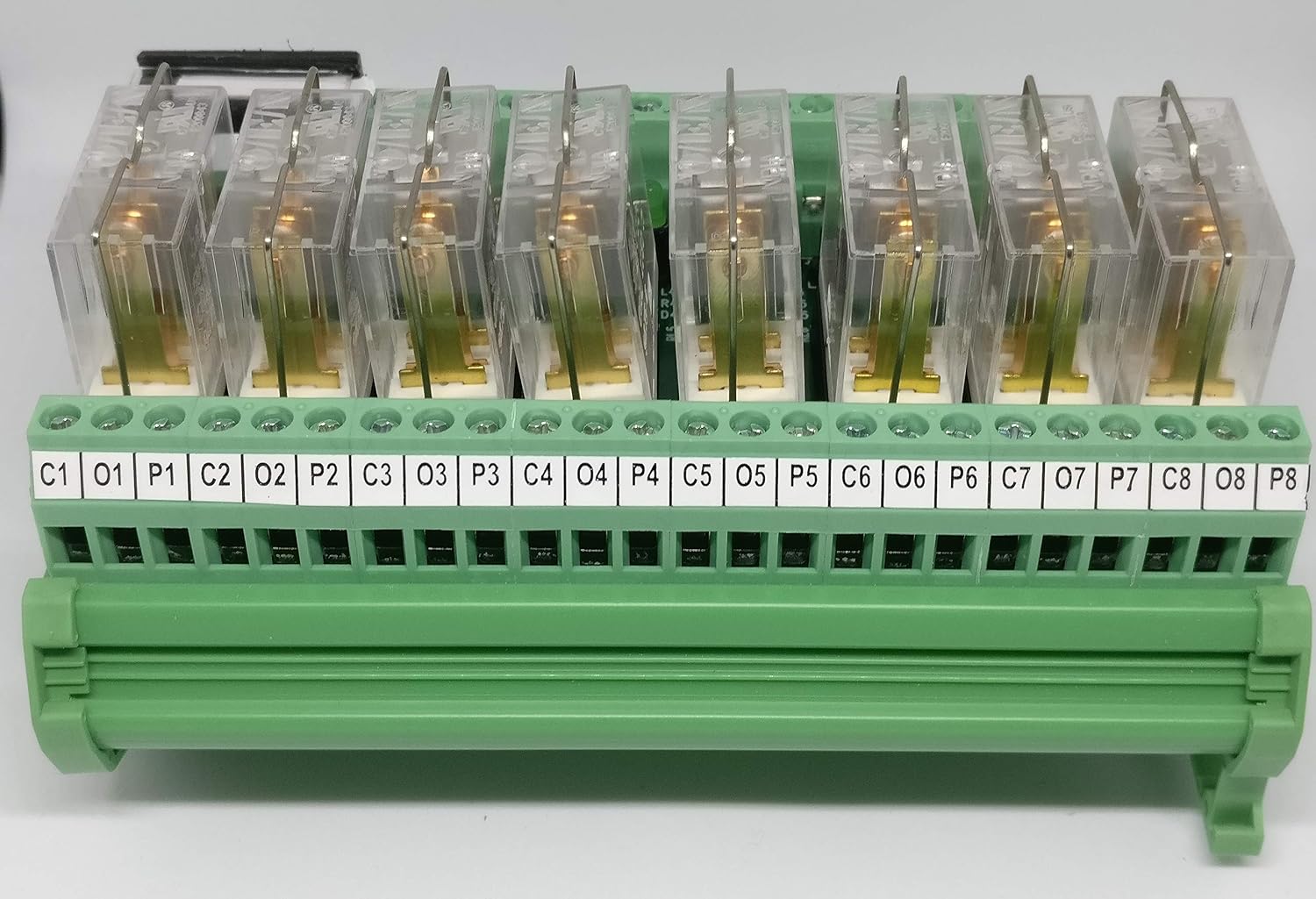

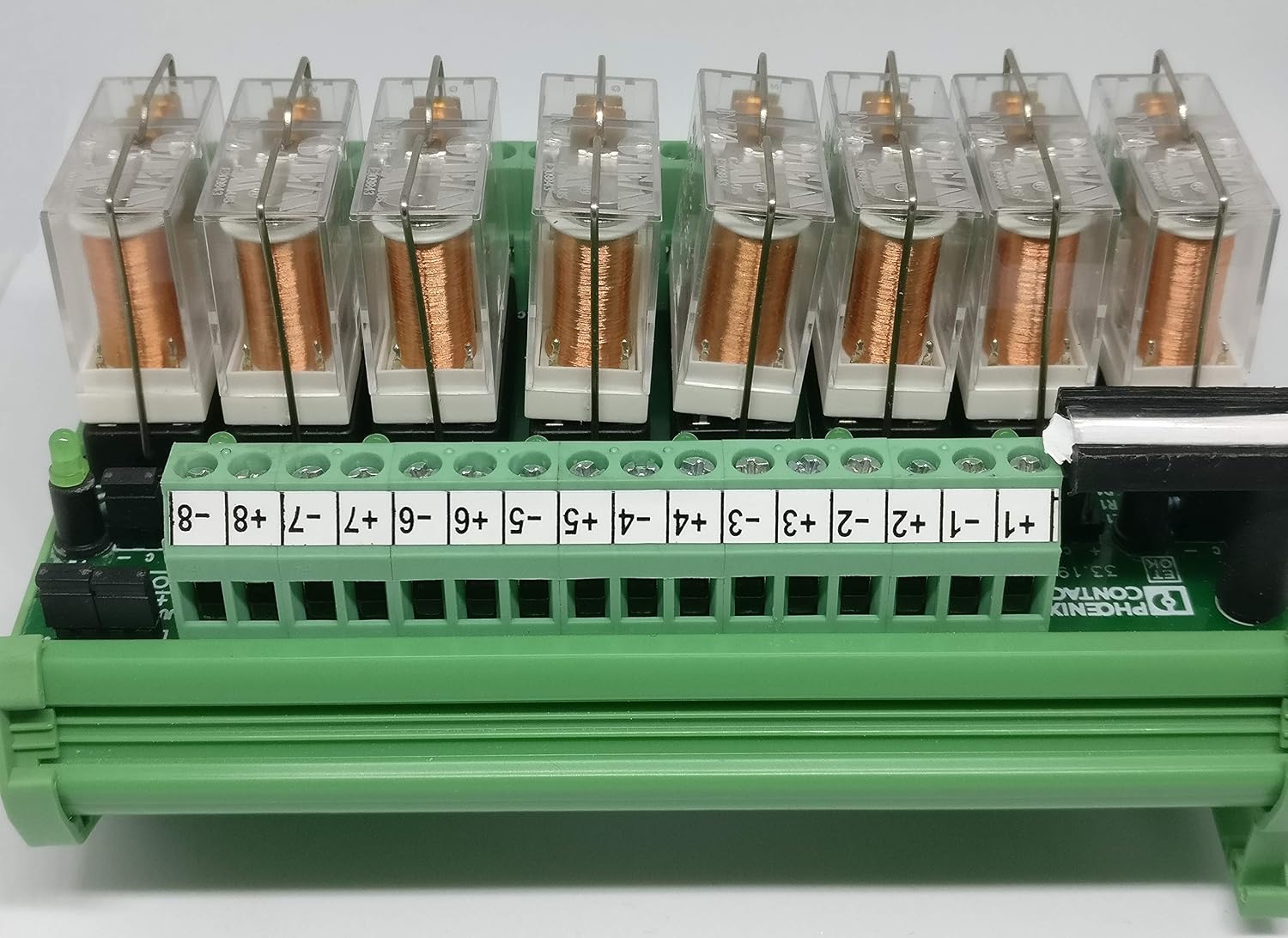

VARIOFACE Relay Module with 08 Electro-mechanical relays. Relays (OEN 58- 24-1C) are rated for 24VDC Coil Voltage and have one changeover. Provision of Looping relays in common negative or common positive configurations. (Interchangeable using flexible jumpers) LED indication to denote relay actuation. Freewheeling diode protection for Relay Coil. DIN Rial mounting The Relays are pluggable.
Product Overview
- Connector Type: Screw
- Contact Material: Silver
- Contact Type: Spdt
- Current Rating: 5 Amps
- Mounting Type: DIN Rail Mount
Product Features
- Nominal input voltage 24V DC, Contact type- Single Changeover (SPDT)
- Maximum switching voltage - 230V AC/30VDC, Limitting continuous Current 5A per contact
- Screw terminals at Input and Output
Product Information
| Connector Type | Screw |
| Contact Type | Spdt |
| Current Rating | 5 Amps |
| Mounting Type | DIN Rail Mount |
| Operation Mode | Automatic |
| Coil Voltage | 24 Volts |
| Contact Current Rating | 5 Amps |
| Maximum Switching Current | 5 Amps |
| Maximum Switching Voltage | 230 Volts |
| Minimum Switching Voltage | 24 Volts (DC) |
| Contact Material | Silver |
| Brand Name | Phoenix Contact |
| Unit Count | 1 Count |
| Manufacturer | Phoenix Contact |
| Part Number | 5792276:02 |
| Best Sellers Rank | |
| ASIN | B08P3DJL81 |
| Customer Reviews | |
| Specification Met | oen |
